| Grade | Code | UNS | Titanium |
| Ti6Al4V ELI / TiGr5 ELI | Grade 23 | R56407 |
Grade 23, also known as Ti6Al4V ELI or Ti64 ELI, is the extra-low-interstitial version of Grade 5. ELI (Extra Low Interstitials) means that interstitial elements are held at very low levels. Compared with Grade 5, tighter limits are applied particularly to oxygen, iron and hydrogen. This gives Grade 23 higher ductility, improved fracture toughness and better damage tolerance, with a slight reduction in strength in some conditions.
| Ti % | N % | C % | H % | O % | Fe % | Al % | V % | Other Elements % |
| Balance | 0.03 max. | 0.08 max. | 0.0125 max. | 0.13 max. | 0.25 max. | 5.50 – 6.50 | 3.50 – 4.50 | 0.10 max. each / 0.40 max. total |
| Product Form | Rp0.2 [MPa] Min. | Rm [MPa] Min. | Elongation [%] Min. | Hardness [HB]* | Density [g/cm³]* |

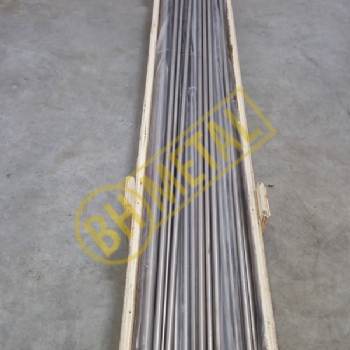

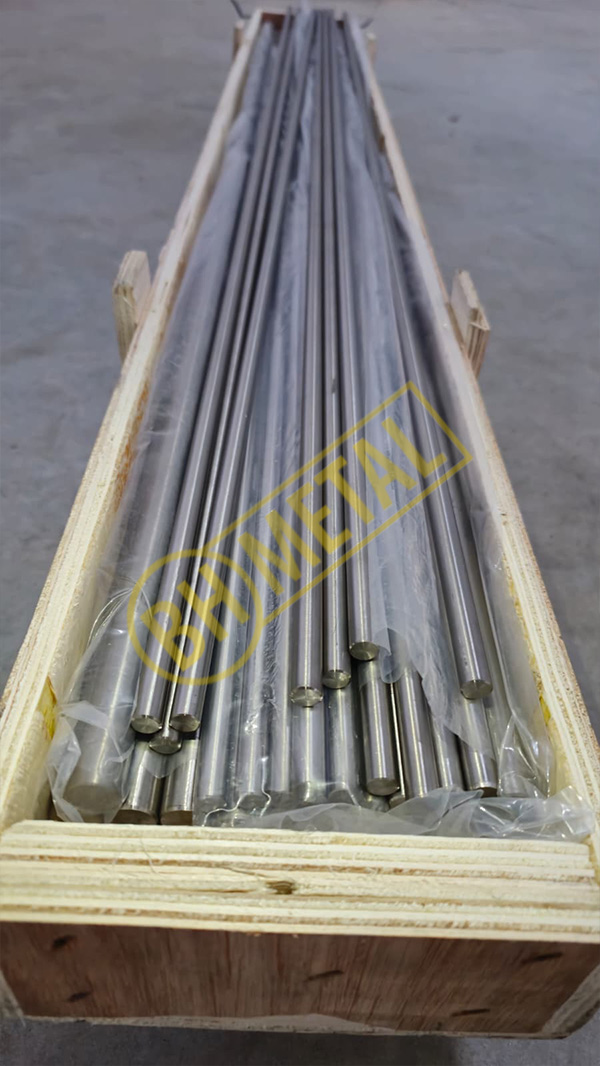

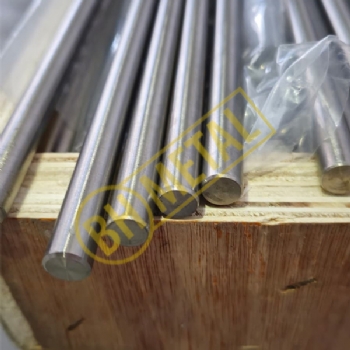

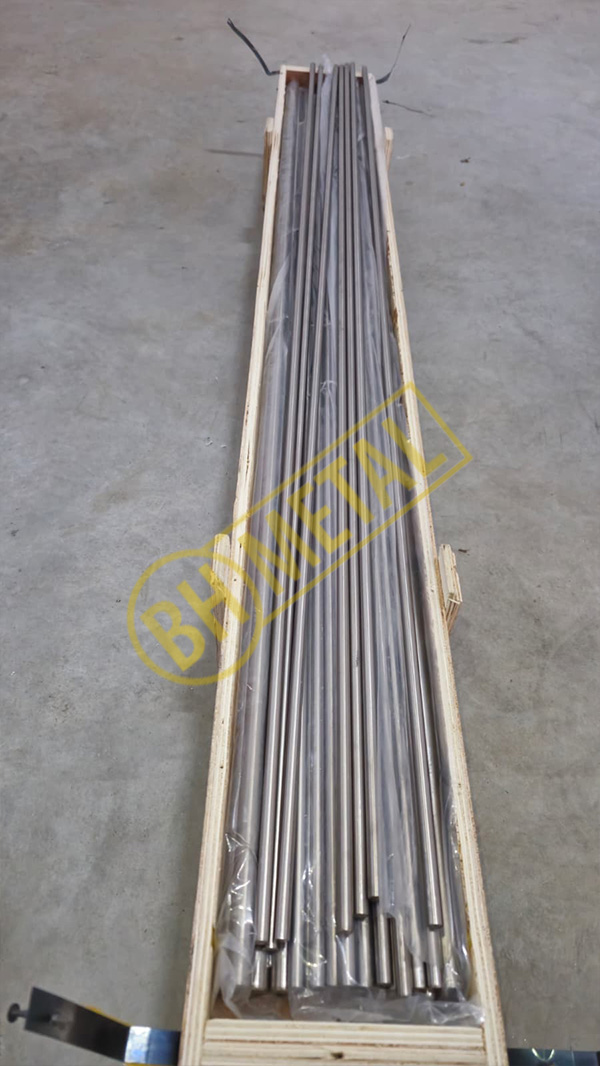

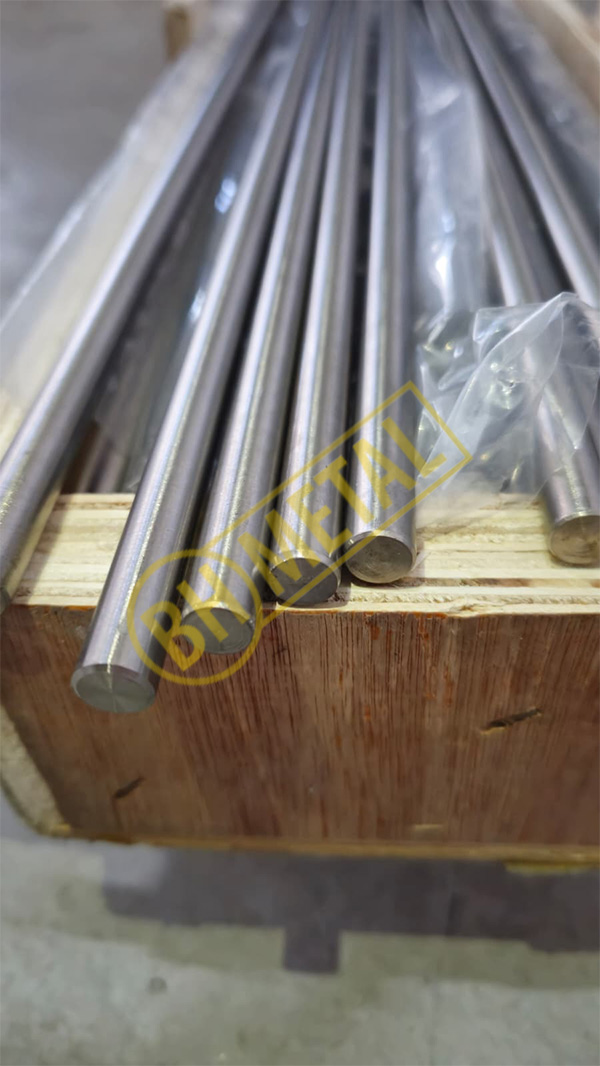

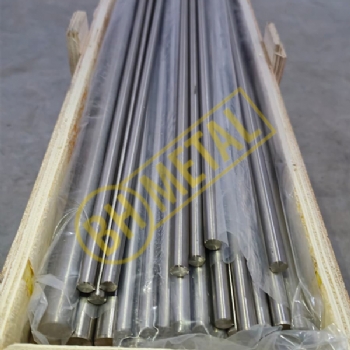

| Round Bar | ≥ 759 | ≥ 828 | ≥ 10 | ≈ 300–326 | 4.43 |
| Plate | ≥ 759 | ≥ 828 | ≥ 10 | ≈ 300–326 | 4.43 |
| Sheet | ≥ 759 | ≥ 828 | ≥ 10 | ≈ 300–326 | 4.43 |
| Industry | 3 Common Products |
| Medical / Orthopedic | Hip and knee implant components, bone fixation plates and screws, surgical clips |
| Dental | Dental implants, implant abutments, dental/prosthetic connection components |
| Cryogenic Systems | Cryogenic pressure vessels, liquefied-gas tank components, cryogenic valves and fittings |
| Marine / Offshore | Subsea and underwater fasteners, pressure housings, corrosion-resistant structural components |
Ti6Al4V ELI is an α+β titanium alloy with a beta transus of about 980°C; its microstructure therefore depends strongly on hot-working and heat-treatment conditions. At room temperature, its elastic modulus is about 107–122 GPa and its thermal conductivity about 6.6 W/m·K. The low thermal conductivity can concentrate heat in the cutting zone during machining. Its magnetic permeability is approximately 1.00005, so it is considered practically non-magnetic.
Ti-6Al-4V ELI, Titanium Grade 23, Ti 6-4 ELI, TiAl6V4 ELI, UNS R56407, UNS R56401 (ASTM F136), W.Nr. 3.7165
| Product Form | General ASTM | Medical ASTM | AMS |
| Round Bar | ASTM B348/B348M Grade 23 | ASTM F136 | AMS 4930 |
| Plate | ASTM B265 Grade 23 | ASTM F136 | AMS 4907 |
| Sheet | ASTM B265 Grade 23 | ASTM F136 | AMS 4907 |
ATI – Allegheny Technologies / ATI Inc., ATI 6-4 ELI™
Carpenter Technology Corporation – Ti 6Al-4V ELI
Note: The information contained in this datasheet is for informational purposes only; no liability is accepted.
